Slide13

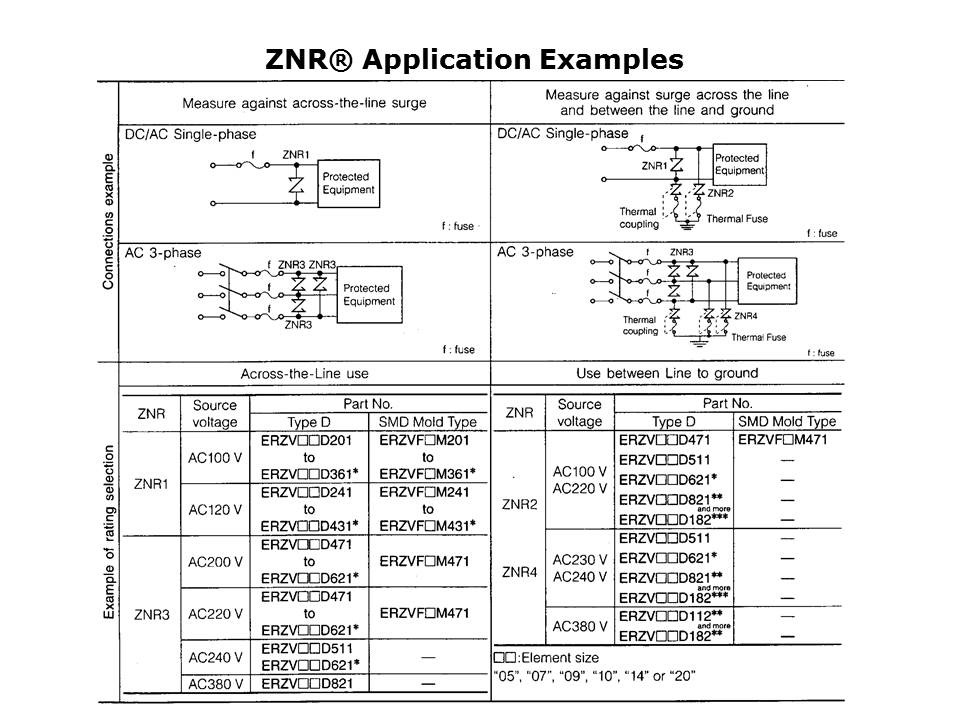

The table on this slide shows recommended applications of varistor voltage for Panasonic’s ERZ-V series (Disc type) and ERZ-VF series (SMD epoxy-molded Type) associated with different line-voltages. The examples shown here include DC/AC single-phase and AC 3-phase in both ungrounded and grounded configurations.
