Slide12

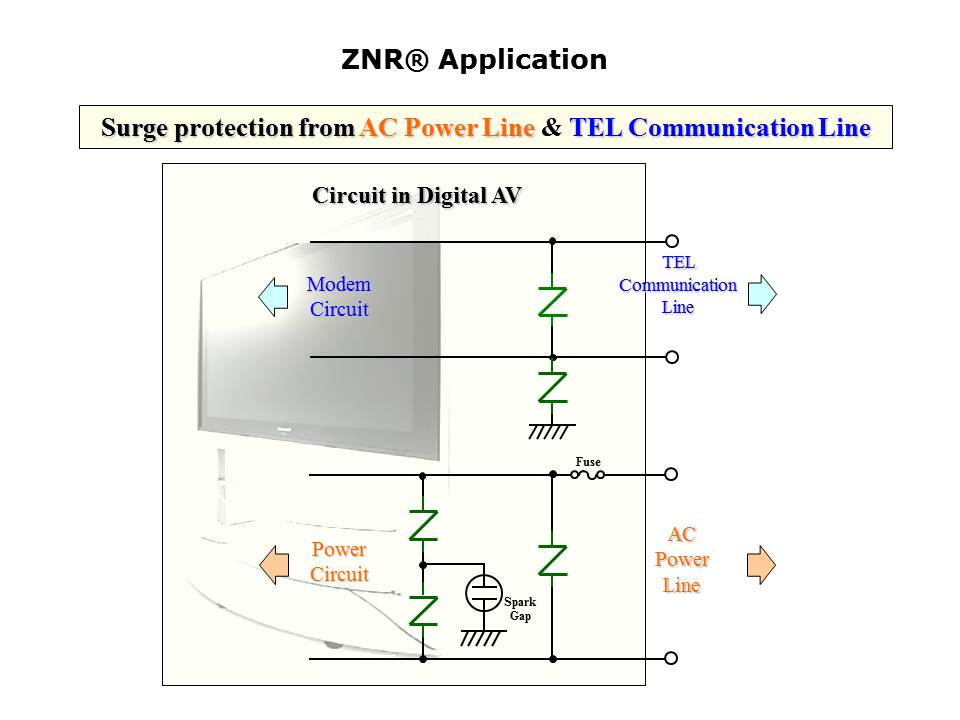

An actual digital TV application with an interactive communication system which uses ZNRs® for the telecommunication line in addition to the AC power line is shown on this slide. There are numerous potential applications for Panasonic’s reliable, high performance ZNR technology with the continued need for surge protection in today’s market, especially with the International Electrotechnical Commission’s (IEC’s) enhanced surge regulations for A/V and information technology equipment.
