Product Highlights > PROFET® - BTS501x Smart High-Side Power Switch

            PROFET® - BTS501x Smart High-Side Power Switch
                    Infineon's BTS501x is a member of the highly integrated PROFET family


Image of Infineon's BTS501x PROFET® - Smart High-Side Power Switch The highly integrated PROFET family, from Infineon, (PROtected FET) incorporates a broad range of smart features. PROFET intelligent power switches consist of a DMOS power transistor and CMOS logic circuitry for complete built-in protection. Some examples that these devices offer protection against include overload, over-temperature, and short-circuits for all kinds of automotive and industrial applications.

Key Benefits to Customer		Applications
Drop-in scalability from 16 mΩ to 10 mΩ in a standard power package Cost-reduction replacement for BTS6142D and BTS443P Provides much lower power dissipation during reverse polarity than the competition (factor of 3x to 4x) Well-known feature set and technology with proven track record (BTS6143D)		Automotive and Industrial 55 W lamps and smaller Seat heater elements Unipolar motor drives Fuse and relay replacement Protected power feeds 2 A to 5 A inductive and capacitive loads

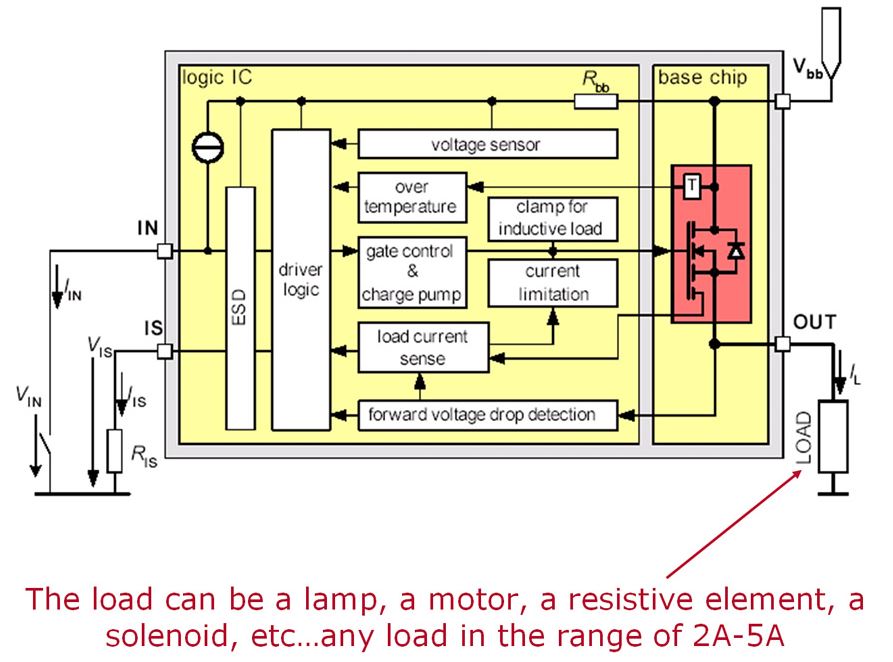

Block Diagram (Click image to view larger version)

Image of Infineon's BTS501x Block Diagram

BTS501x Power Switch

Manufacturer Part Number	Description	Available Quantity	Price	View Details
BTS5012SDAAUMA1	IC PWR SWITCH N-CHAN 1:1 TO252-5	4704 - Immediate	$27.44	View Details
BTS5014SDAAUMA1	IC PWR SWITCH N-CHAN 1:1 TO252-5	37985 - Immediate	$27.64	View Details
BTS5016SDAAUMA1	IC PWR SWITCH N-CHAN 1:1 TO252-5	5941 - Immediate	$25.93	View Details

Published: 2012-06-29
