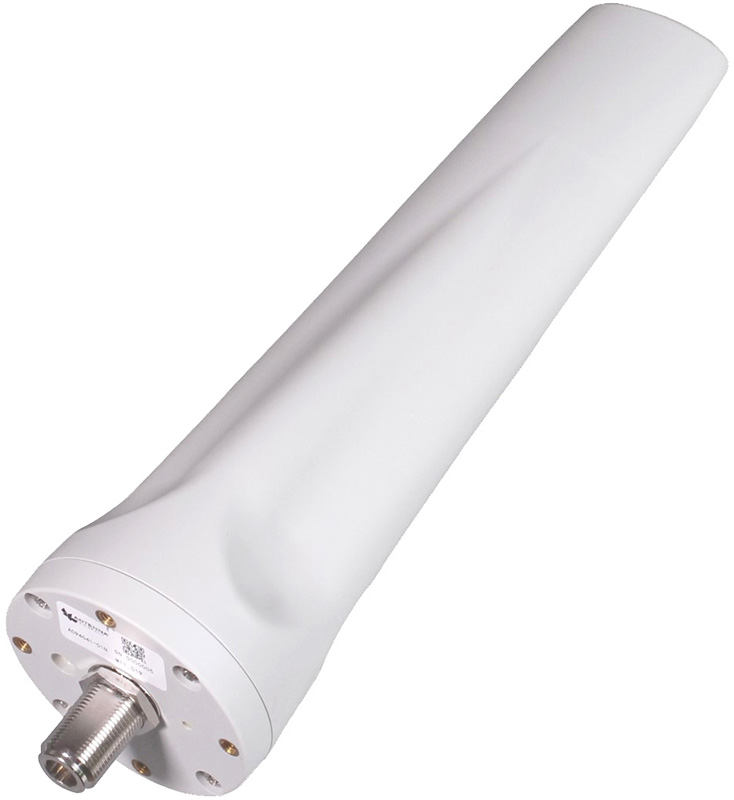

AC94541-01N External Panel-Mount Cellular Dome Antenna
The Antenna Company AC94541-01N cellular 5G/4G/LTE antenna incorporates IP67 ingress protection, IK10 impact resistance, and a UV-stabilized dome
The Antenna Company AC94541-01N cellular 5G/4G/LTE panel mount dome antenna combines excellent cellular and cellular IoT (Cat-M1/LTE-M, NB-IoT) performance in the 410 LTE and 450 LTE bands and bands from 600 MHz to 3800 MHz. The antenna incorporates IP67 ingress protection, IK10 impact resistance, and a UV-stabilized dome. It has been tested for salt spray resistance and flammability rating, providing a high level of robustness for challenging outdoor applications and environments. The AC94541-01N antenna is terminated with an N jack (female) connector. The AC94541-01NA antenna variant is also terminated with an N jack (female) connector, accompanied by a mounting accessory kit that includes a stainless steel L-bracket, a band clamp for pole mounting, an adhesive foam gasket, and mounting screws.
- Excellent multiband coverage:
- 410 MHz to 470 MHz
- 600 MHz to 960 MHz
- 1700 MHz to 3800 MHz
- N jack (female) connector
- Environmental performance:
- IP67 rating
- MIL-STD 810F/ASTM B117 salt spray testing
- UL 94 HB flammability rating
- IK10 rating
- Suitable for mounting on metallic and non-metallic surfaces
- Cellular IoT:
- Cat-M1/LTE-M
- NB-IoT
- 900 MHz cellular
- Long-reach cellular:
- LTE 410
- LTE 450
- Smart utility infrastructure
AC94541-01N External Panel-Mount Cellular Dome Antenna
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
![]() | ![]() | AC94541-01N | ANT 410-470MHZ 5G 4G LTE DOME | 100 - Immediate | $610.60 | View Details |
![]() | ![]() | AC94541-01NA | ANT 410-470MHZ 5G 4G LTE DOME | 99 - Immediate | $734.93 | View Details |
