Lattice“ Semiconguctor Corporanon \/

isp

Lever

CORE

October 2005

ipug28_02.0

1GbE PCS IP Core

User’s Guide

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Introduction

The 1GbE PCS Intellectual Property (IP) Core targets the programmable array section of the ORCA

ORT42G5

device and provides the PCS (Physical Coding Sublayer) function.

PCS (Physical Coding Sublayer) and PMA (Physical Media Attachment) are sublayers of the physical layer imple-

mentation of IEEE 802.3 standards. The PCS provides a uniform interface to the MAC sublayer through GMII

(Gigabit Media Independent Interface) for all 1000Mb/s PHY implementations.

The ORT42G5 device is built on the Series 4 re-configurable embedded System-on-a-Chip (SoC) architecture and

is made up of SERDES transceivers containing four channels, each operating at up to 3.7Gbits/s, with a full-duplex

synchronous interface with built-in RX Clock and Data Recovery (CDR), and transmitter pre-emphasis, for high-

speed data transmission.

This user’s guide explains the functionality of the 1GbE PCS core and how to achieve the maximum level of perfor-

mance.

The 1GbE PCS core comes with the documentation and the files listed below:

• Data sheet

• Lattice gate level netlist

• Simulation models and test benches available for free evaluation

• Core instantiation template

Features

• Complete 1Gb Ethernet Physical Coding Sublayer solution based on the ORCA ORT42G5 device

• IP targeted to the ORT42G5 programmable array section implements functionality conforming to IEEE 803.2-

2002

– Encoding/decoding of GMII data octets

– Optional Auto-negotiation function with management registers and interface

– 10Gbps aggregate throughput

• Ethernet functionality supported by the embedded section of the ORT42G5

– Supports 8b/10b encoding/decoding

– Serialization/deserialization of code groups for transmit/receive

– Clock recovery from encoded data stream

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Figure 1. 1GbE PCS Solution

Functional Description

The major blocks in the 1GbE PCS core are shown in Figure 1. Descriptions of these blocks follow.

Transmit Section

This section implements the Transmit State Machine which is specified by Figures 36-5 and 36-6 in Clause 36 of

the IEEE 802.3-2002 Standard.

The PCS Transmit process continuously generates code-groups based upon the

TXD <7:0>

TX_EN

and

TX_ER

signals on the GMII, sending them immediately to the Line Interface. The PCS Transmit process monitors the Auto-

negotiation process transmit flag to determine whether to transmit data or reconfigure the link.

Receive Section

Receive Synchronization State Machine

This module implements the synchronization state machine which is specified by the Figure 36-9 of the IEEE

802.3-2002 Standard.

The Synchronization process is responsible for determining whether the underlying receive channel is ready for

operation. The process continuously accepts code-groups from the Line Interface and scans them to detect the

acquisition and maintenance of code group synchronization. This state machine also sets the

sync_status

flag

which is monitored by the receive state machine.

Receive State Machine

This module implements the receive state machine, which is specified by Figures 36-7a and 36-7b in Clause 36 of

the IEEE 802.3-2002 Standard.

The PCS Receive process continuously accepts and monitors code-groups from the Line Interface and generates

RXD <7:0>

RX_DV

and

RX_ER

on the GMII, and the internal receiving flag used by the Carrier Sense and Trans-

mit processes.

Auto-negotiation

This module implements the Auto-negotiation state machine, which is specified by the Figure 37-6 in Clause 37 of

the IEEE 802.3-2002 Standard.

tx_sm

Optional

autoneg

tx_sync

Embedded

ASB Section

ORT42G5 Device

Programmable Array Section

1G Line umi

rx_sync_cc

rx_sm

ort42g5_inf

rx_sync_sm

Optional

gmii_mac_inf

Optional

Management

Interface

pcs_1g_core

GMII or

MAC

Interface

PLL

MDIO

or MAC

interface

125MHz

tx/rx

clocks

PLL

SERDES

8b/10b

Systembus

ORT42G5

(ASB)

Note: Optional interfaces are not needed if an Ethernet MAC Interfafce is present on-chip

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

The Auto-negotiation function that allows a device (local device) to advertise modes of operation it possesses to a

device at the remote end of a link segment (link partner) and to detect corresponding operational modes that the

link partner may be advertising. The Auto-negotiation function exchanges information between two devices that

share a link segment and automatically configures both devices to take maximum advantage of their abilities.

Management Interface

The MDIO Management Interface is implemented based on specifications in Clause 22 of the IEEE 802.3-2002

standard.

The management interface is used to connect a management entity and a managed PHY for the purposes of con-

trolling the PHY and gathering status from the PHY. The management interface consists of a pair of signals that

physically transport the management information across the GMII, a frame format and a protocol specification for

exchanging management frames, and a register set that can be read and written using these frames.

GMII Interface

This module, depending on the configuration, provides a GMII Interface or a connection to an on-chip MAC.

ORT42G5 Interface

This section provides the following functions:

• A bridging function between the 8-bit PCS core and the 32-bit Application Specific Block (ASB). The data rate

translation cross the two clock domains is achieved using asynchronous FIFOs.

• Clock compensation to a tolerance of +/- 100 ppm between the recovered clock and IP system clock. This is

done by insertion or deletion of idle characters.

• Logic to program the control registers inside the ASB through the system bus User Master Interface.

Design Parameters

Table 1. Parameter Descriptions

Parameter Description

GMII_INF

If this parameter is set to “yes”, a GMII interface will be provided through the

FPGA I/Os to an external device. If this parameter is set to “no”, an internal

interface will be provided to a MAC on the same chip.

AUTO_NEG

If this parameter is set to “yes”, the Auto-negotiation module and Manage-

ment registers will be enabled. If this parameter is set to “no”, the Auto-

negotiation module and Management registers will be disabled.

MDIO_INF

The optional MDIO Interface is only available if the Auto-negotiation param-

eter is set to “yes”. If the MDIO parameter is set to “yes”, an MDIO interface

will be provided through the FPGA I/Os to an external device.

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

These registers are accessed through the Management Interface (SMI). They are only present if Auto-negotiation

and Management Interface options are selected. The registers are based on the register definition in the Section

22 of IEEE 802.3-2002.

Table 2. Top Level Register Addresses

Table 3. Register Map for 1GbE PCS Core

Control Register 0x0

Status Register 0x1

PHY Identifier Register 0x2

PHY Identifier Register 0x3

Auto-negotiation Advertisement Register 0x4

Auto-negotiation Link Partner Ability Register 0x5

Auto-negotiation Expansion Register 0x6

Extended Status Register 0xf

Address:

0x0

Name:

Control Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

RST LP SS0 ANE PD IS RAN DUP COL SS1 RESERVED

Default value: 0x0140 Mode: Read/Write

Description:

RST 1 = Reset; 0 = Normal operation. Self clearing

LP Enables Loopback mode

SS0, SS1 Speed Selection set to “01” – indicates 1000 Mb/s. Read only

ANE Auto-negotiation Enable

RAN Restart Auto-negotiation. Self clearing

PD Unsupported functions. Set to Zero. Read only

IS Unsupported functions. Set to Zero. Read only

COL Unsupported functions. Set to Zero. Read only

DUP Duplex mode. Set to One – only Full Duplex supported. Read only.

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Table 3. Register Map for 1GbE PCS Core (Continued)

Address:

0x1

Name:

Status Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

RESERVED ES R PS ANC RF ANA LS JD EC

Default value: 0x0109 Mode: Read Only

Description:

ES Extended Status Information in Register 15. Bit set to One

R Reserved. Bit set to zero

PS Preamble Suppression. Not supported. Bit set to zero

RF Remote Fault

ANA Auto-negotiation Ability. Bit set to One

LS Link Status

JD Jabber Detect. Not supported. Bit set to zero

EC Extended Register capability

ANC Auto-negotiation Complete

Address:

0x2

Name:

PHY Identifier Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

PHY2

Default value: 0x2222 Mode: Read Only

Description:

PHY2 Combined with Register 3 it forms a 32-bit value which serves as an identifier.

Address:

0x3

Name:

PHY Identifier Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

PHY3

Default value: 0x3333 Mode: Read Only

Description:

PHY3 Combined with Register 2 it forms a 32-bit value which serves as an identifier.

Address:

0x4

Name:

Auto-negotiation Advertisement Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

NP R RF RESERVED PAUSE HD FD RESERVED

Default value: 0x01 Mode: Read/Write

Description: This register contains the Advertised Ability of the PHY.

RESERVED, R Reserved bits are set to zero

FD Full Duplex mode supported. Bit set to One

HD Half Duplex mode not supported. Bit set to Zero

PAUSE Provides Pause capability exchange mechanism

RF Remote Fault encoding not supported. Bits set to zero

NP Next Page Function. Not supported. Bit set to zero.

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Table 3. Register Map for 1GbE PCS Core (Continued)

Address:

0x5

Name:

Auto-negotiation Link Partner Ability Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

LP_ADV_ABILITY

Default value: 0x0000 Mode: Read Only

Description:

LP_ADV_ABILITY This register contains the Advertised Ability of the Link Partner’s PHY.

Address:

0x6

Name:

Auto-negotiation Expansion Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

RESERVED NP AN R

Default value: 0x0000 Mode: Read Only

Description:

RESERVED, R Reserved bits are set to zero

NP Next Page Able (In this core the value is “0”)

AN New Page Received

Address:

0xF

Name:

Extended Status Register

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

FD RESERVED

Default value: 0x8000 Mode: Read Only

Description:

RESERVED Reserved bits are set to zero

FD 1000BaseX Full Duplex supported (set to “1” in this core)

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Signal Descriptions

Table 4. Signal Definitions for 1GbE PCS Solution I/O

Signal Name Direction Description

Clocks and Resets

RX_CLK_125

Input Receive Clock (125MHz)

TX_CLK_125

Input Transmit Clock (125MHz)

RST_N

Input Active Low Reset

USR_CLK

Input Clock for the User Master Interface

GMII/MAC Interface

RX_DV

Output Receive Data Valid

RX_D [7:0]

Output Receive Data Bus

RX_ER

Output Receive

TX_ER

Input Transmit Error Indicator

TX_D [7:0]

Input Transmit Data Bus

TX_DV

Input Transmit Data Valid

MDIO Signals

MDC

Input MDIO clock

MDIO

Input/Output MDIO bi-directional data

Line Interface

REFCLKN_A

Input CML reference clock input – SERDES Quad A

REFCLKP_A

Input CML reference clock input – SERDES Quad A

HDINN_AC

Input High-speed CML receive data input – SERDES Quad A, Channel C

HDINP_AC

Input High-speed CML receive data input – SERDES Quad A, Channel C

HDOUTN_AC

Output High-speed CML receive data output – SERDES Quad A, Channel C

HDOUTP_AC

Output High-speed CML receive data output – SERDES Quad A, Channel C

Auto-negotiation Signals

(if MDIO is not implemented)

MR_ADV_ABILITY[15:0]

Input Advertisement Register

MR_AN_ENABLE

Input Enable Auto-negotiation

MR_RESTART_EN

Input Restart Auto-negotiation

MR_AN_COMPLETE

Output Auto-negotiation Complete

MR_LP_ADV_ABILITY[15:0]

Output Link Partner Ability Register

MR_PAGE_RX

Output Page Received

LINK_STATUS

Output Link Status

Control Signals

(if MDIO is not implemented)

MR_MAIN_RESET

Input Core Reset

MR_LOOPBACK

Input Enable Loopback

1. The signals listed here are required for the Embedded SPI-4 interface Quad A, Channel C. Please refer to the ORT42G5 Data Sheet for

additional information on configuring the SPI-4 interface for specific applications.

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Table 5. Signal Definitions for 1GbE PCS Solution - FPGA/Embedded ASB Interface (Internal to ORT42G5

Device)

Signal Name

FPGA

Direction Description

Receive Interface Signals

RSYSCLK_A2

Output Low-speed receive FIFO clock for Channel AC

RCK78A

Input Receive low-speed clock to FPGA – SERDES Quad A

MRWDAC[39]

Input Code violation for Receive Data Byte 3 Channel AC

MRWDAC[38]

Input K_CTRL for Receive Data Byte 3 Channel AC

MRWDAC[37:30] Input Receive Data Byte 3 Channel AC

MRWDAC[29] Input Code violation for Receive Data Byte 2 Channel AC

MRWDAC[28] Input K_CTRL for Receive Data Byte 2 Channel AC

MRWDAC[27:20] Input Receive Data Byte 2 Channel AC

MRWDAC[19] Input Code violation for Receive Data Byte 1 Channel AC

MRWDAC[18] Input K_CTRL for Receive Data Byte 1 Channel AC

MRWDAC[17:10] Input Receive Data Byte 1 Channel AC

MRWDAC[9] Input Code violation for Receive Data Byte 0 Channel AC

MRWDAC[8] Input K_CTRL for Receive Data Byte 0 Channel AC

MRWDAC[7:0] Input Receive Data Byte 0 Channel AC

Transmit Interface Signals

TSYSCLK_AC Output Transmit Low Speed Clock Channel AC

TCK78A Input Transmit Low Speed Clock to FPGA – SERDES Quad A

TWDAC[31:0] Output Transmit Data Channel AC

TCOMMAAC[3:0] Output Transmit Comma Character Channel AC

TBIT9AC[3:0] Output Transmit Force Negative Disparity Channel AC

1. The signals listed here are required for the Embedded SPI-4 interface Quad A, Channel C. Please refer to the ORT42G5 Data Sheet for

additional information on configuring the SPI-4 interface for specific applications.

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

1GbE PCS Core Design Flow

The 1GbE PCS IP Core can be implemented using various methods. The scope of this document covers only the

push-button Graphical User Interface (GUI) flow. Figure 2 illustrates the software flow model used when evaluating

with the 1GbE PCS.

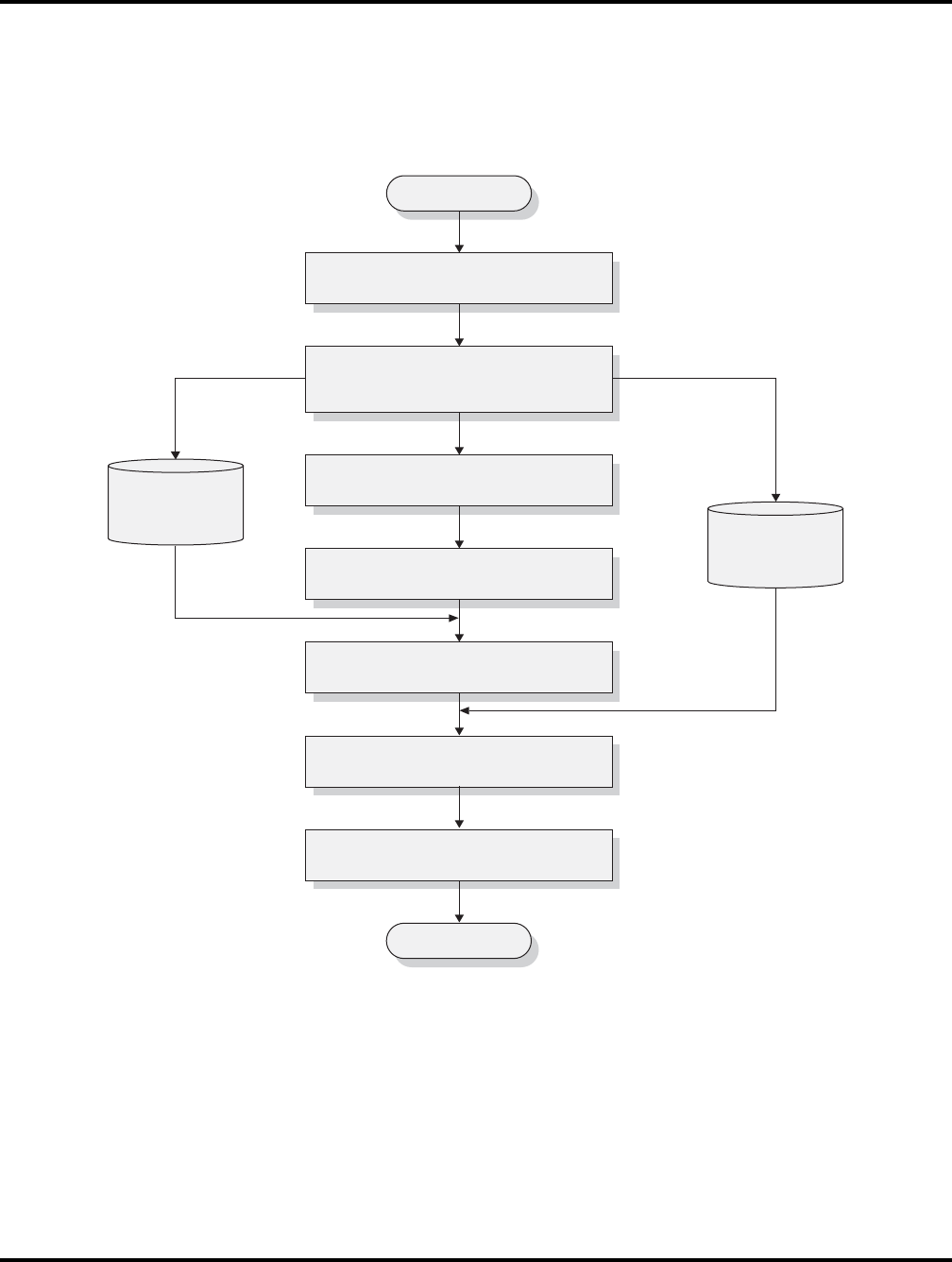

Figure 2. Lattice IP Core Evaluation Flow

Functional Simulation

Simulation script files are provided in the “eval” directory for RTL simulation. These scripts rely on the sysbus and

ORT42G5 models already installed with the ispLEVER® software which includes the ORT42G5 device. If these

models are not installed, they should be installed before proceeding with this IP Core evaluation.

The script file <user_compile.do > will compile all of the user code in the evaluation. The user code for this IP core

is the top level chip module. The script file <user_vsim.do> will need to be modified by the user to point to the sys-

bus and ORT42G5 simulation models (The ORT42G5 uses the ort82g5_work simulation model). Once modified

this script will load the full chip and testbench. The script file <user_wave.do> will add all of the appropriate wave-

Install and launch ispLEVER software

IP Core Netlist

Start

Protected

Simulation

Model

Obtain desired IP package (download

Core Evaluation package or purchase

IP package)

Install IP package

Perform functional simulation with

the provided core model

Synthesize top-level design with the

IP black box declaration

Place and route the design

Run static timing analysis

Done

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

forms for the user. These scripts care located in the 1gbe_pcs_o4_1_001\orca4\ver1.0\eval\simula-

tion\scripts.

NOTE: The procedure described here is applicable ONLY when using ModelSim for simulation.

Simulation Procedures

1. Launch ModelSim

2. Using the main GUI, change the directory location

Select: File -> Change Directory -> 1gbe_pcs_o4_1_001\orca4\ver1.0\eval\simulation

3. Execute <user_compile.do> to compile the full chip design and testbench files.

Select: Macro -> Execute Macro -> scripts\<user_compile.do>

For ModelSim 5.6a or above:

Select: Tools -> Execute Macro -> scripts\<user_compile.do>

4. Modify the script <user_vsim.do> to point to the sysbus_work and ort82g5_work simulation model. These

models are provided in the ispLEVER installation and ORT42G5.

5. Execute <user_vsim.do> to load the full chip design and testbench

Select: Macro -> Execute Macro -> scripts\<user_vsim.do>

For ModelSim 5.6a or above:

Select: Tools -> Execute Macro -> scripts\<user_vsim.do>

6. Execute <user_wave.do> to load the appropriate waveforms for the simulation

Select: Macro -> Execute Macro -> scripts\<user_wave.do>

For ModelSim 5.6a or above:

Select: Tools -> Execute Macro -> scripts\<user_wave.do>

7. Run the simulation.

Select: Simulate -> Run -> Run-all

Core Implementation

Running Synthesis Using Synplicity’s Synplify

The step-by-step procedure provided below describes how to run synthesis using Synplify outside the ispLEVER

Project Navigator.

1. Change directory to 1gbe_pcs_o4_1_001\orca4\ver1.0\eval\synthesis\synplicity

2. Launch the Synplify synthesis tool

3. Select: Run -> Run TCL Script... -> pcs_1g_top.tcl

4. Within the provided project file the speed grade, implementation and device are preselected.

5. A default EDIF is also provided by the project file. This top-level EDIF netlist will be used during Place and

Route.

6. Within the supplied synthesis scripts the necessary options have been supplied for a complete synthesis pass.

7. Select Run

8. The EDIF file (.edn) will be located in the ver1.0 directory.

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Running Synthesis Using LeonardoSpectrum

The step-by-step procedure provided below describes how to run synthesis using LeondardoSpectrum outside the

ispLEVER Project Navigator.

1. Change directory to: 1gbe_pcs_o4_1_001\orca4\ver1.0\eval\synthesis\exemplar

2. Launch the LeonardoSpectrum synthesis tool

3. Start a new project by opening <pcs_1g_top.tcl>

Select: File -> Run Script -> pcs_1g_top.tcl

4. The script file contains the necessary parameters to target an ORCA 4 device.

5. The EDIF and generated preference file will be located in the same directory.

Running Place and Route (PAR) for ORCA devices in ispLEVER

The step-by-step procedure provided below describes how to perform Place and Route in ispLEVER for an ORCA

device.

The core is required to internally interface with the customer application logic. The Place and Route tool requires a

parameter constraint file for the particular GbE PCS IP core in order to correctly create an .NCD file.

1. Launch the Lattice Project Navigator tool.

2. Start a new project: File -> New Project

3. Browse to the directory of the desired location of the project. The generated files will be placed in this directory.

4. Enter the project name and then select EDIF as the project type.

5. Change the device type to an ORT42G5 with a -2 speed grade and BM484 package.

6. Copy the following files to the Place and Route working directory:

a) ..\eval\ngo\1gbe_pcs_o4_1_001.ngo

b) ..\eval\prf\<synthesis tool>\pcs_1g_top.prf

c) The top-level EDIF netlist generated from running synthesis

7. Import the EDIF netlist into the project: Source -> Import...

8. Import the preference file into the project: Source -> Import Constraint File...

9. In the ispLEVER Project Navigator, highlight Place & Route Design, with a right mouse click select Properties.

Set the following properties:

- Placement Iterations: <5 >

- Routing Passes: <15>

All other options remain at their default values.

10. Select the Place & Route Trace Report in the project navigator to execute Place and Route and generate a tim-

ing report for ORCA.

www. \anicesemmom www.lanicesemi.com

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Reference Information

The 1GbE PCS IP core solution is compliant with the standard IEEE 803.2-2002. A complete description of this

standard is given in the specification document.

Additional information on implementing this solution is contained in the following documents:

• ORCA ORT42G5 FPSC Data Sheet

• ORCA Series 4 FPGAs Data Sheet

• Lattice technical note number TN1017, ORCA Series4 MPI/System Bus

These documents are available on the Lattice web site at www.latticesemi.com.

Technical Support Assistance

Hotline: 1-800-LATTICE (North America)

+1-503-268-8001 (Outside North America)

e-mail: techsupport@latticesemi.com

Internet: www.latticesemi.com

' nicesemi om/soﬂware

Lattice Semiconductor 1GbE PCS IP Core User’s Guide

Appendix for ORCA Series 4 ORT42G5 FPSC

Table 6. Available Configuration

Table 7. Performance and Utilization1

Supplied Netlist Configurations

The Ordering Part Number (OPN) for all configurations of this core is 1GBE-PCS-O4-N1.

You can use the IPexpress™ software tool to help generate new configurations of this IP core. IPexpress is the Lat-

tice IP configuration utility, and is included as a standard feature of the ispLEVER design tools. Details regarding

the usage of IPexpress can be found in the IPexpress and ispLEVER help system. For more information on the

ispLEVER design tools, visit the Lattice web site at: www.latticesemi.com/software.

Configuration

Number Configuration Features

001

• GMII interface through FPGA I/Os.

• No auto-negotiation and Management registers.

• No MDIO interface.

Configuration PFUs Block RAM PLL LUTs Registers fMAX

1gbe_pcs_o4_1_001 157 4 2 622 605 125 MHz

tx_clk

rx_clk

1. Performance and utilization characteristics are generated using an ORT42G5-2BM484C in Lattice’s ispLEVER 4.0 software. When using

this IP core in a different density, package, speed, or grade within the ORT42G5 family, performance may vary.

Products related to this Datasheet

IP CORE ETH PCS 1GB ORT42G5

1GBE-PCS-O4-N1
