ADAM MQTT Manual

Edition V1.0 , Oct. 2017

1. Introduction of MQTT(Message Queue Telemetry Transport)

MQTT protocol is the lightweight messaging transport. Clients connect to the broker and the

MQTT message is forwarded by broker. Furthermore, ADAM is designed with features that make it

more flexible in the IoT applications.

Feature 1: Actively Publish MQTT Message

Advantech ADAM can be set up to actively publish I/O data in the form of MQTT message at a

user’s defined interval. This feature provides an efficient way to transmit data and lower the system

Feature 2: Shorten Downtime with Actively Alarm Event Notification

The alarm event is usually referred to the digital input status changes or analog input in out of the

user’s defined range. Advantech ADAM is designed with alarm trigger mechanism with instant notice.

The MQTT message will be published to broker at the moment that alarm conditions is reached.

2. MQTT Format for ADAM module

Digital Input/output module :

ADAM-6050/6051/6052/6060/6066

Description

MQTT Topic

JSON data

Firmware

Get the I/O data

of ADAM digital

input/output

module

Advantech/MAC ID /data

Example:

Advantech/0013430C981C/data

{"s":1,"t":0,"q":192,"c":1, "dix":DI

status,"dox":DO status}

D version

: V6.01B11

and higher

version

Set the value of a

digital output of

ADAM module

Advantech/MAC ID/ctl/dox

Example:

Advantech/0013430C981F/ctl/do1

{"v":DO status},

D version

: V6.01B11

and higher

version

Will Topic

Advantech/MACID/Device_Status

Example:

Advantech/0013430C981F/

Device_Status

{ "status":"Device Status",

"name":"Device

Name","macid":"MACID",

"ipaddr":"IP Address"}

D version

:V6.01B13

And higher

version

ADAM-6250/6251/6256/6260/6266

Description

MQTT Topic

JSON data

Firmware

Get the I/O data

of ADAM digital

input/output

module

Advantech/MAC ID /data

Example:

Advantech/0013430C981C/data

{"s":1,"t":0,"q":192,"c":1, "dix":DI

status,"dox":DO status}

AE version

: A1.06B02

and higher

version

Set the value of a

digital output of

ADAM module

Advantech/MAC ID/ctl/dox

Example:

Advantech/0013430C981F/ctl/do1

{"v":DO status},

AE version

: A1.06B02

and higher

version

Will Topic

Advantech/MACID/Device_Status

Example:

Advantech/0013430C981F/

Device_Status

{ "status":"Device Status",

"name":"Device

Name","macid":"MACID",

"ipaddr":"IP Address"}

AE version

: A1.06B03

And higher

version

Analog Input modules: ADAM-6017

Description

MQTT Topic

JSON data

Firmware

Get the I/O data

of ADAM

Analog input

module

Advantech/MAC ID /data

Example:

Advantech/0013430C981C/data

{"s":1,"t":0,"q":192,"c":1, "aix":AI

value,"ai_stx":condition, "dox":DO

status, "do_stx":condition}

CE version

:V5.03 B03

and higher

version

Get an analog

input range

configuration.

Advantech/MAC ID/cfg/sensor/aix

Example:

Advantech/0013430C981F/cfg/sensor/ai1

{"typ":"Range"}

CE version

:V5.04 B00

and higher

version

Set the value of a

digital output of

ADAM module

Advantech/MAC ID/ctl/dox

Example:

Advantech/0013430C981F/ctl/do1

{"v":DO status},

CE version

:V5.03 B03

and higher

version

Set an analog

input

configuration

Advantech/MAC ID/set/sensor/aix

Example:

Advantech/00D0C9F94344/set/sensor/ai1

{"typ":"Range"}

CE version

:V5.04 B00

and higher

version

Will Topic

Advantech/MACID/Device_Status

Example:

Advantech/0013430C981F/

Device_Status

{ "status":"Device Status",

"name":"Device

Name","macid":"MACID",

"ipaddr":"IP Address"}

CE version

:V5.04 B00

and higher

version

General

s: Reserved for further use, default value 1

t: Reserved for further use, default value 0

q: Reserved for further use, default value 192

c: Reserved for further use, default value 1

DI/O Module

dix: Digital Input status of channel(x-1)

example: {"di2":true} means status of DI channel 1 is true

dox: Digital Output status of channel(x-1)

example: {"do2":true} means status of DO channel 1 is true

DO status true:on, false:off

DI status true:on, false:off

AI Module

aix: Analog Input value of channel (x-1)

Note: If AI channel is disabled, AI value shows “9999.9999”

ai_stx: Condition of analog Input channel (x-1)

ai_stx value

Condition

Channel disable

Streaming, normal

High latch

High momentary

Low latch

Low momentary

do_stx: Condition of digital output channel(x-1), only for ADAM-6017 Digital output

do_stx value

Condition

Streaming, normal

DO change

Host Bmker II’) Henrtheal keeE-Alive

typ: Input range

Range Input rage value

Range value

Input range

0-20mA

0~20mA

4-20mA

4~20mA

+-20mA

±20mA

0-5V

0~5V

1-5V

1~5V

0-10V

0~10V

0-1V

0~1V

0-500mV

0~500mV

0-150mV

0~150mV

+-10V

±10V

+-5V

±5V

+-2.5V

±2.5V

+-1V

±1V

+-500mV

±500mV

1.3 MQTT Configuration

The MQTT of ADAM can be configured by ADAM.Net utility (V2.05.11 B05 and higher version)

or ASCII command.

Note :MQTT function must be disabled before configuration and enable the MQTT function after

configuration is done.

 Host (Broker IP)

Users set up the broker URL or IP address . ADAM module connection to broker over standard

MQTT protocol.

 Heartbeat (keep-Alive)

The broker will regularly check the connection with the ADAM at interval of heartbeat

(keep-Alive) setting. The minimum interval setting is 5 seconds.

Dead band Ret' n Message Will to git 5:05 Qualitv of Service

 Dead band

Dead band is set to determine the minimum interval between publishing two MQTT messages. It

is set to prevent MQTT message from publishing excessively by noise.

 Retain Message

When the retain function is enabled. The broker will store the last message of the topic. If a new

subscription for the topic is made, the message will be sent to the client. Client is able to get the

last message and does not need to wait until the next message is updated.

 Will topic

If the client subscribes the topic for the ADAM which is disconnected, the broker will inform the

clients by sending the will message to whom subscribe the will topic

Will Topic of ADAM: Advantech/MACID/Device_Status

Will message:

{ "status":"Device Status", "name":"Device Name","macid":"MACID", "ipaddr":"IP Address"}

Will message example:

{"status":"disconnect","name":"ADAM6051","macid":"00D0C9FEFFF5","ipaddr":"10.0.0.1"}

 QoS(Quality of Service)

Users can choose the QoS level of publish/subscribe. Three levels of QoS (Quality of Service)

are defined in MQTT.

Level 0: broker/client deliver the message at most once

Level 1: broker/client deliver the message at least once

Level 2: broker/client deliver the message exactly once

 Publish/Subscribe Topic

The MQTT message is forwarded by broker based on the MQTT topic. Each message contains

the data value. When client publishs MQTT message to broker, the clients who subscribe the

topic will receive the MQTT message accordingly.

lnlnmahnnl mmxk] 5mm lAdmmmml HmmlPZPIEvnnll Ammcmml ModbmAddmst MQ'H' | Puhhsh I 3mm Hm , Hambeu Inmvul Rm. Meme ' wm Tupi: V mush Q9: Publish Tops Subscnh: QaS . 5‘.nt mm mm: mg 1933 —_|. F Emu [5— :cmnﬂs) soon unﬂivcnnﬂs) l— Emu Advantzchﬂﬂmcgmﬂamwnﬁhm W AdvmmWDDCQDBlBIch/gnmxlul AdvmmWDDCQDBIBIcfg/amx/aﬁ AdvmhechtﬂﬂDDCQl-VﬂlBlcfyamx/ai} Advantzchﬂﬂmcgmﬂ Elcdldoi AdvantzchMUWCBWB lalui/samuﬂnl AdvanmhlﬂﬂWCBWﬂEluﬂwmxﬂaﬂ MVMEEWUWCBWE lBlui/semuxﬂui} AdvanmhIUUWCBWZBlBIuﬁ/semﬂuid AdvanmhMUWCBWB lBIsei/semurﬂuﬁ Chld l AdvmhechlﬂﬂDDCQDZﬂB/dm AdvanMMIDWCBPZ] l Elcdldnl Apply

1.3.1Configuration by ADAM.Net utility

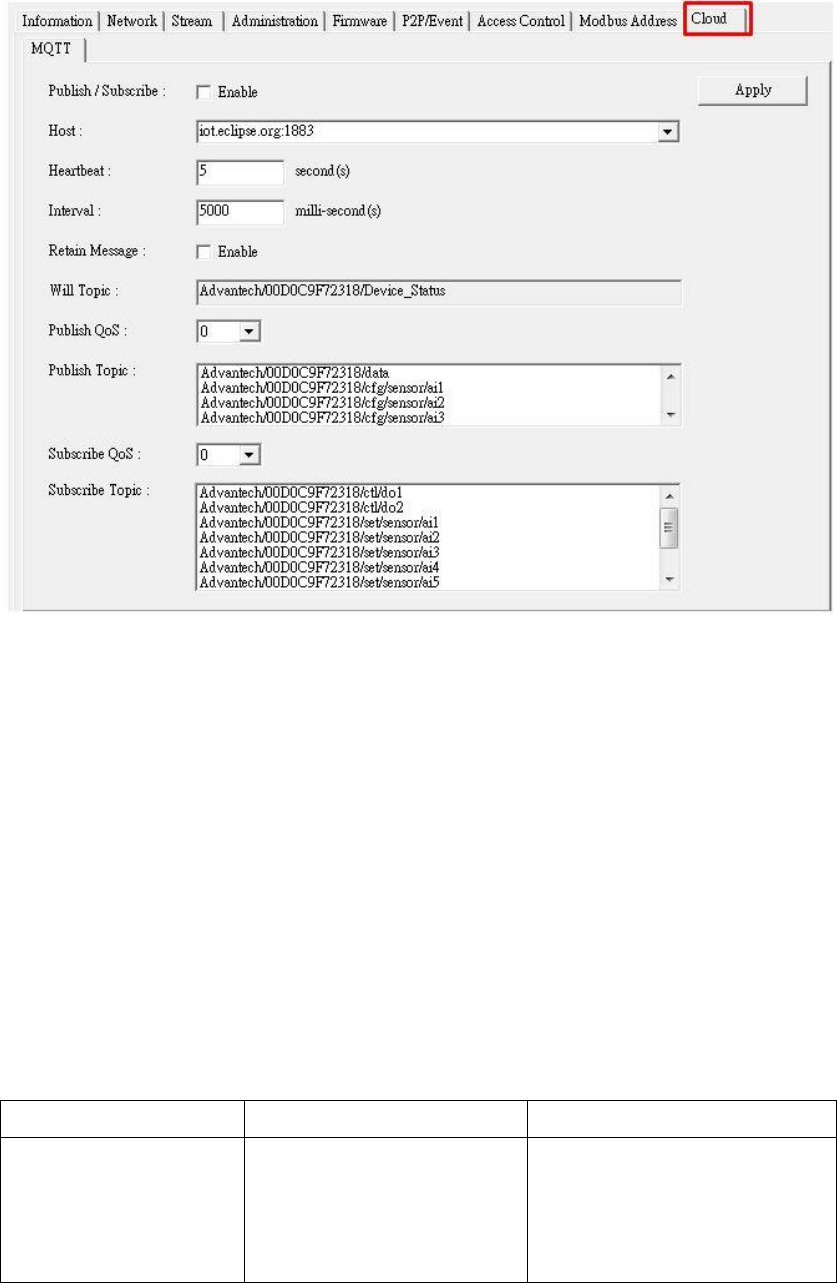

Click “Cloud button” in the function list to configure the MQTT setting

Users could set up the broker URL or IP address at “Host”. Three public broker sources link are

listed in the utility

- iot.eclipse.org

- test.mosquitto.org

- broker.mqttdashboard.com

1.3.2 Configuration by ASCII

Digital input/output modules:

ADAM-6050/6051/6052/6060/6066/6250/6251/6256/6260/6266

Command

Description

Remarks

%aaSETMQTTENxx

Set MQTT enable/disable

aa: always 01

xx: 01 (enable),

00 (disable)

Return: >01

Error: ?01

%aaSETMQTTADxx…x

Set IP address of the broker

aa: always 01

xx…x: IP address/domain

(0~50 character)

Return: >01

Error: ?01

%aaSETMQTTHBxxxx

Set heartbeat interval

aa: always 01

xxxx: heartbeat interval in second

(0005~FFFF)

Return: >01

Error: ?01

%aaSETMQTTPDxxxx

Set publishing deadband

aa: always 01

xxxx: publishing deadband in

millisecond (0032~03E8)

Return: >01

Error: ?01

%aaSETMQTTPRxx

Set publishing retain

enable/disable

aa: always 01

xx: 01 (enable),

00 (disable)

Return: >01

Error: ?01

%aaSETMQTTPQxx

Set publishing Qos

aa: always 01

(xx): publishing Qos (00~02)

Return: >01

Error: ?01

%aaSETMQTTSQxx

Set subscribing Qos

aa: always 01

(xx): publishing Qos (00~02)

Return: >01

Error: ?01

ujhhhj%aaGETMQTTEN

Get MQTT enable/disable

aa: always 01

Return: !01 (enable)

!00 (disable)

Error: ?01

%aaGETMQTTAD

Get IP address of the broker

aa: always 01

Return: !IP Address/Domain (IP

Address/DomainName)

Error: ?01

%aaGETMQTTHB

Get heartbeat interval

aa: always 01

Return: !xxxx (heartbeat interval in

hex format)

Error: ?01

%aaGETMQTTPD

Get publishing deadband

aa: always 01

Return: !xxxx (deadband in hex

format)

Error: ?01

%aaGETMQTTPR

Get publishing retain

enable/disable

aa: always 01

Return: !00 (enable)

!01 (disable)

Error: ?01

%aaGETMQTTPQ

Get publishing Qos

aa: always 01

Return: !xx (publishing Qos in hex

format)

Error: ?01

%aaGETMQTTSQ

Get subscribing Qos

aa: always 01

Return: !xx (subscribing Qos in hex

format)

Error: ?01

Analog input modules

ADAM-6017

Command

Description

Remarks

%aaSETMQTTENxx

Set MQTT enable/disable

aa: always 01

xx: 01 (enable),

00 (disable)

Return: >01

Error: ?01

%aaSETMQTTADxx…x

Set IP address of the broker

aa: always 01

x…x: IP address/domain

(0~50 character)

Return: >01

Error: ?01

%aaSETMQTTHBxxxx

Set heartbeat interval

aa: always 01

xxxx: heartbeat interval in second

(0005~FFFF)

Return: >01

Error: ?01

%aaSETMQTTSTxxxxxxxx

Set publishing data streaming

interval time

aa: always 01

xxxxxxxx: publishing data streaming

interval time in millisecond

(0032~FFFFFFFF)

Return: >01

Error: ?01

%aaSETMQTTPRxx

Set publishing retain

enable/disable

aa: always 01

xx: 01 (enable),

00 (disable)

Return: >01

Error: ?01

%aaSETMQTTPQxx

Set publishing Qos

aa: always 01

(xx): publishing Qos (00~02)

Return: >01

Error: ?01

%aaSETMQTTSQxx

Set subscribing Qos

aa: always 01

(xx): publishing Qos (00~02)

Return: >01

Error: ?01

%aaGETMQTTEN

Get MQTT enable/disable

aa: always 01

Return: !01 (enable)

!00 (disable)

Error: ?01

%aaGETMQTTAD

Get IP address of the broker

aa: always 01

Return: !IP Address/Domain (IP

Address/DomainName)

Error: ?01

%aaGETMQTTHB

Get heartbeat interval

aa: always 01

Return: !xxxx (heartbeat interval

in hex format)

Error: ?01

%aaGETMQTTST

Get publishing data streaming

interval time

aa: always 01

Return: !xxxxxxxx (data streaming

in hex format)

Error: ?01

%aaGETMQTTPR

Get publishing retain

enable/disable

aa: always 01

Return: !00 (disable)

!01 (enable)

Error: ?01

%aaGETMQTTPQ

Get publishing Qos

aa: always 01

Return: !xx (publishing Qos in hex

format)

Error: ?01

%aaGETMQTTSQ

Get subscribing Qos

aa: always 01

Return: !xx (subscribing Qos in

hex format)

Error: ?01

a was amp Help Search Device Add Davina: {a Gmup Group Canﬁgmah'on Term-l ‘ov Comm-mi mung PrimSaeen Hm F.4- Picky-v Mow-inn sueeWEvem Dam mm M m Pan Mam GCL D on. Maw Mow-«m APAX wsz , ADAM MQTT Mm m cum I: WM [m 1 WW. - M "W, mm mm. W m ”mg m w w \m \s \ mm.“ a» mm mm"... \uv ‘

1.4 How to start the MQTT with ADAM

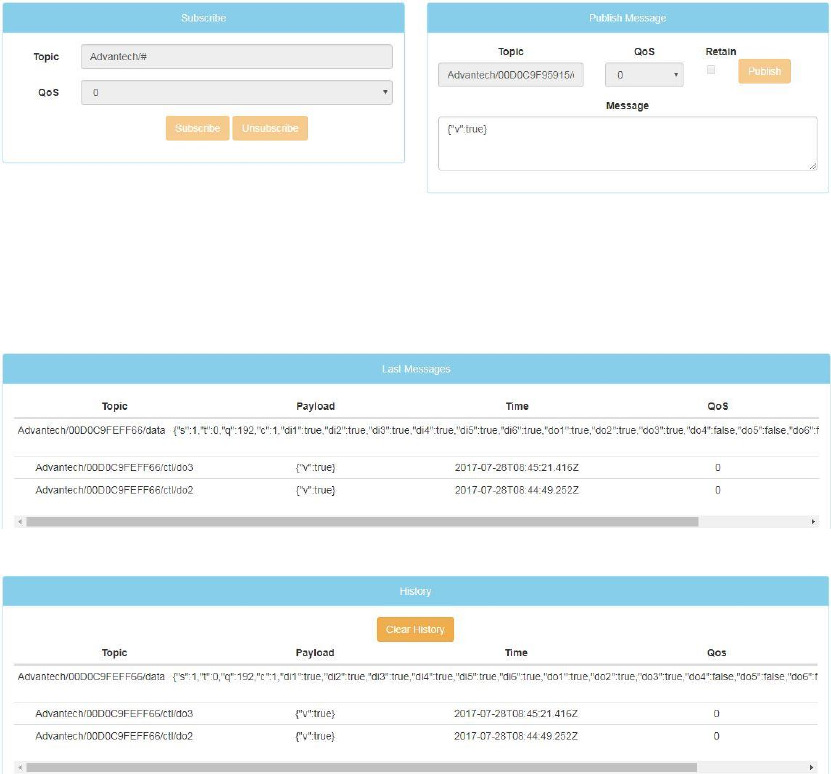

ADAM.Net utility provides the pages to simulate MQTT client to test the MQTT of ADAM modules.

Users are able to experience the benefits of the ADAM with MQTT in 4 steps.

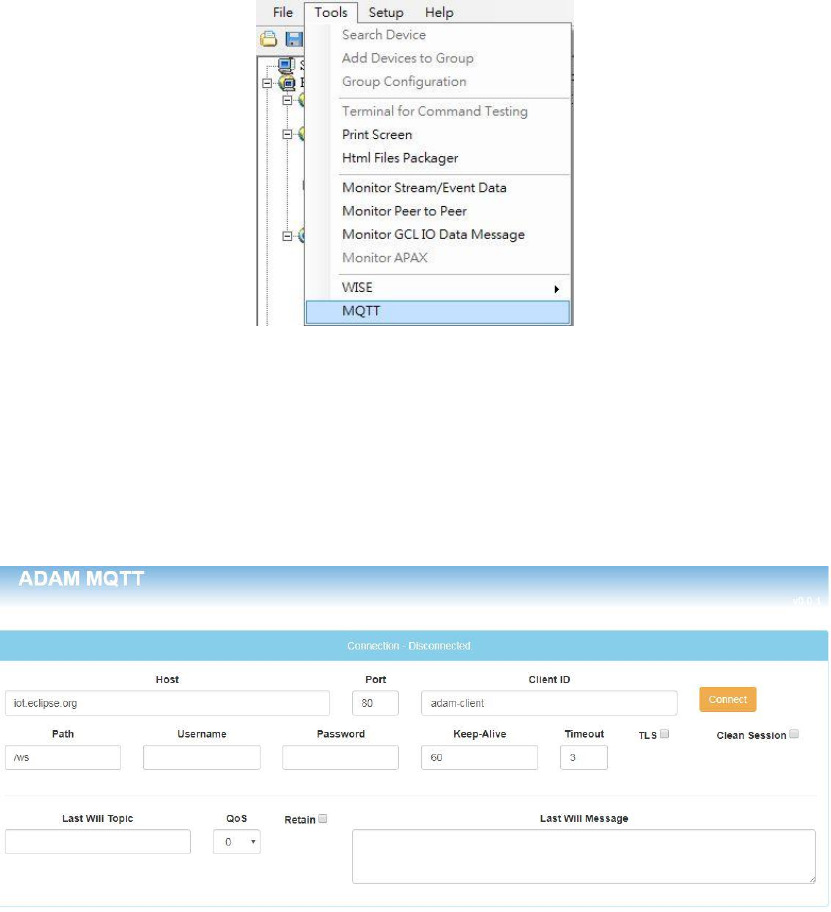

Step 1 :Click “Tools” and “MQTT”, the page will forward to ADAM MQTT page

Step 2 :Set up the connection

In the connection configuration page, user is able to set up the client information. The default host is

public broker source” iot.eclipse.org” at port 80. Users can also set up the host URL or IP address.

Click “connect” when the configuration is done.

Note: 1. Path, Username, Password, TLS, Clean session function is not released

2. The webpage only supports the connection to broker over WebSocket

Mn my: w— EDI Ammmmmsm ('s" w nrqv‘ «92 v I.‘mlmm‘>m1mlm.m‘mxmy mm'dis‘m'ﬂm'ﬂmgmytu: «oa- cm W'IsgmleMﬂW mmmrramm ('vvue) :mmmm 1511 m: n mmmmmum Prune] mummies u ”2522 n m Hyman m a.“ mmmam. (-5- w mpg-m 'L'1rm1'Iluawrzmm‘wmkmmwmuw was ummm-ummmm-mT mw-uu,-ammswu erzmmm (Tum magnum: m1 m: n mnmmﬁmm fv' m; momma “492522 0

Step 3: Subscribe/Publish function

Users set up the topic and choose the QoS level, then click the subscribe button. The message of the

topic will be shown in the history field.

Publish

Set up publish topic, QoS and message, then click Publish button. The MQTT message will be

published to the broker. If the retain function is enabled. ADAM will receive the last message when

subscribes the topic.

Step 4: Review the MQTT Message

Users can read the last MQTT message and the historical messages in last message column and history

column.

Last message of ADAM module

History message of ADAM module
